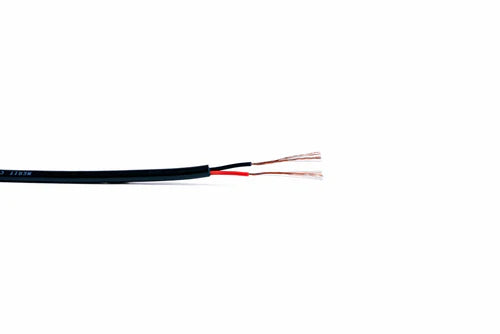

10 mm² Two Core Flexible Copper Cable
10 mm² Two Core Flexible Copper Cable
10 mm² Two Core Flexible Copper Cable

10 mm² Two Core Flexible Copper Cable

The 10 mm² Double Core Flexible Copper Cable is specially designed for applications requiring reliable dual-core power...
Rs.50,000.00
Rs.50,000.00
10 customers are viewing this product
Hurry up! only 0 left
Size: 90meter
Subtotal: Rs.50,000.00
Description
Description
x

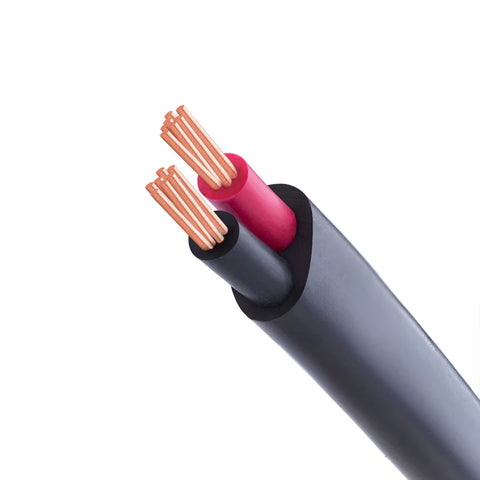

The 10 mm² Double Core Flexible Copper Cable is specially designed for applications requiring reliable dual-core power transmission in both residential and commercial environments. Constructed using 84 fine strands of 0.30 mm diameter copper wire per core, this cable delivers excellent conductivity, flexibility, and mechanical strength.

Product Specifications

  • Product Name: 10 mm² Double Core Flexible Copper Cable (84/0.30 mm x 2 Cores)

  • Conductor Material: High Purity Annealed Copper (99.99%)

  • Conductor Size per Core: 84 strands of 0.30 mm diameter

  • Total Cross-Sectional Area per Core: 10.0 mm²

  • Conductor Type: Multi-stranded (Flexible)

  • Cores: 2 (Individually insulated + sheathed together)

  • Insulation Material: Flame-Retardant PVC

  • Outer Sheath: PVC or XLPE (based on requirement)

  • Voltage Rating: 450/750V

  • Current Carrying Capacity: Approx. 65–75 Amps per core (in free air)

  • Temperature Range: -10°C to +70°C

  • Color Coding: Red & Black / Red & Blue / Custom

  • Compliance: IEC 60227 / BS Standards / RoHS

  • Typical Applications: Solar inverter to battery connections, AC power transmission, heavy appliances, generator wiring, industrial systems
